CNC Horizontal Machining Center for Large Housings: Multi-Face Machining for Heavy Parts
A CNC horizontal machining center for large housings is typically selected when a plant needs stable milling, drilling, tapping, boring, and multi-face machining on bulky workpieces that are difficult to process efficiently on single-side equipment. For buyers handling cast housings, valve bodies, industrial enclosures, automotive powertrain parts, or structural components, the main problem is not only cutting speed. Fixture stability, chip removal, rotary positioning, and repeatable accuracy across batches often matter more.

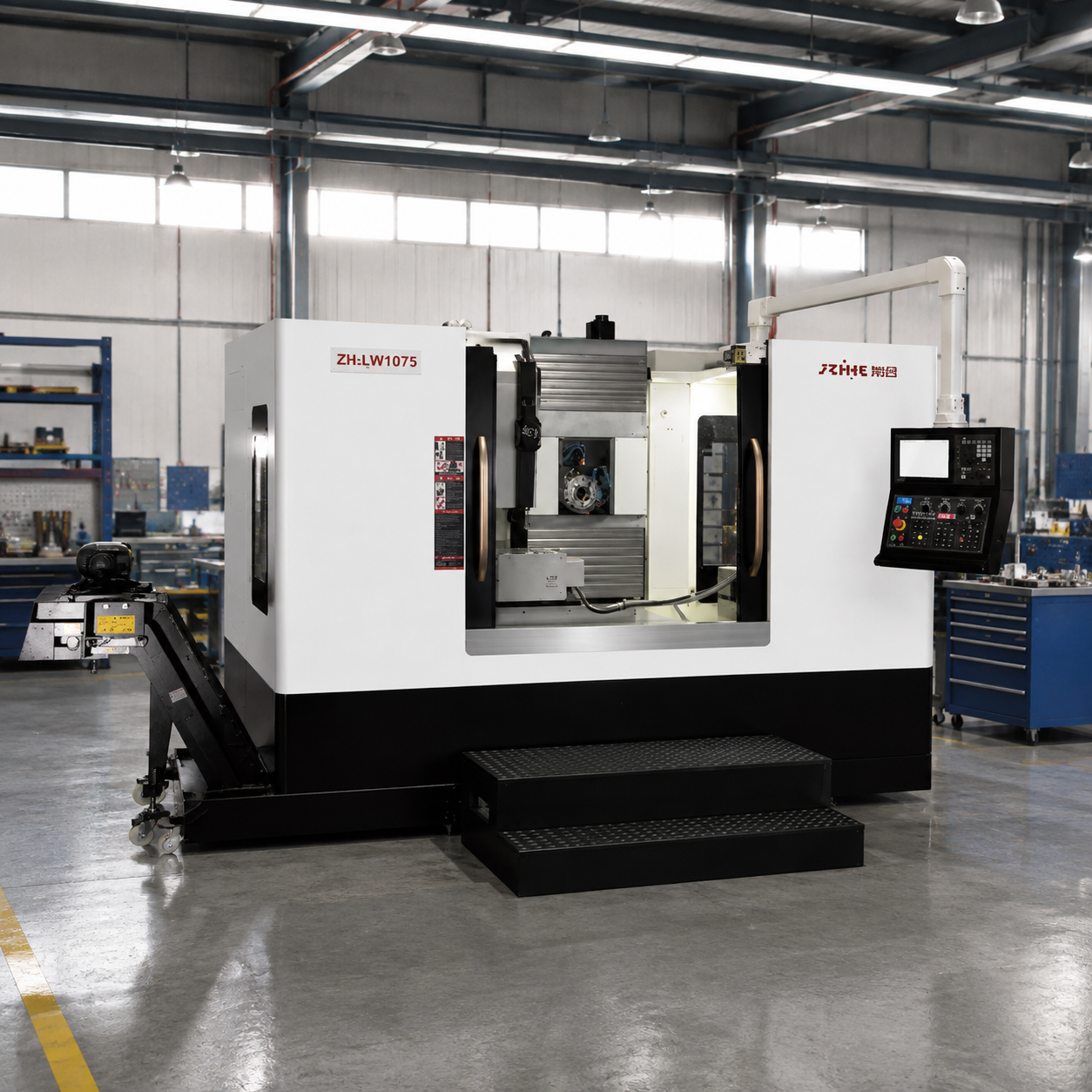

The linked Zhihe CNC product page presents this machine as a High-Rigidity Horizontal Machining Solution for heavy-duty precision manufacturing. It adopts a fixed-column integral structure combined with a cross-slide table layout, supported by an extra-large monolithic machine base and a wide-span A-shaped column structure. This design is intended to improve motion precision, dynamic stability, vibration resistance, load-bearing capacity, thermal stability, and dimensional consistency during long production cycles.
Product Overview
Large housings usually require several machining steps: rough milling, face machining, hole-making, threaded features, boring, and finishing across multiple surfaces. If every side must be re-clamped manually, the process becomes slow and risky. Hole positions can drift. Bores may lose alignment. Operators spend more time checking and correcting than cutting.
A horizontal machining center helps reduce that problem by using a more stable machine layout and rotary-table machining approach. According to the product page, this machine includes a precision CNC rotary table with arbitrary angle positioning, allowing efficient multi-face and multi-process machining in a single setup. For large housings, valve components, and box-type parts, this is one of the key reasons buyers choose an HMC instead of relying only on conventional machining equipment.
Key Capabilities and Selection Points
Heavy-duty structural design
The machine’s fixed-column structure, cross-slide table, monolithic base, and wide-span A-shaped column are all aimed at one thing: stable machining under heavy-duty cutting conditions. For buyers, this matters because large housings often generate high cutting loads, interrupted cuts, and long machining cycles. A weak structure may lead to poor surface finish, hole-position error, vibration marks, or reduced tool life.
Multi-face machining in one setup
The integrated CNC rotary table supports arbitrary angle positioning, helping the machine complete several machining faces with fewer manual interventions. On housing and valve components, this can reduce cumulative setup error and improve consistency between related surfaces, holes, ports, and mounting faces.
Heavy cutting with surface quality control
The product page states that the machine is optimized for heavy cutting while maintaining surface finish quality and dimensional precision. That balance is important. For a heavy duty HMC, removing material is only part of the job; the machine also needs to keep geometric relationships stable from the first part to the last part in the batch.
Optional five-axis linkage expansion
For more complex parts, the product page also lists optional five-axis linkage expansion. Not every buyer needs this configuration, but it can be useful when the part includes angled surfaces, compound features, or machining requirements that go beyond standard indexed multi-face work.
Product Information Buyers Should Notice
| Product Point | Information from Product Page | Buyer Meaning |
|---|---|---|
| Machine structure | Fixed-column integral structure | Supports rigidity and stable machining |
| Table layout | Cross-slide table design | Helps maintain precision movement |
| Base structure | Extra-large monolithic machine base | Improves vibration resistance and load-bearing capacity |
| Column design | Wide-span A-shaped column | Supports rigidity and thermal stability |
| Rotary table | Precision CNC rotary table | Enables multi-face machining |
| Positioning function | Arbitrary angle positioning | Reduces repeated manual repositioning |
| Machining mode | Single-setup multi-face composite machining | Improves productivity and reduces setup error |
| Expansion option | Optional five-axis linkage | Supports more complex part requirements |
| Protection | Fully enclosed safety protection system | Contains chips and coolant, improves operator safety |
| Operation | Ergonomic control interface and maintenance access | Supports daily use and service efficiency |
The public product page focuses on structure, rotary-table capability, protection design, application fields, and manufacturer capability. Buyers should still request the full technical specification sheet before ordering, including axis travel, table size, load capacity, spindle power, spindle speed, controller, tool magazine, positioning accuracy, repeatability, coolant system, and optional accessories.
Materials and Surface Finish Considerations
This type of horizontal machining center is commonly evaluated for heavy metal parts, housings, valve components, industrial enclosures, disk and sleeve components, and powertrain-related parts. The product page lists application areas including medium and large-sized housings, valve components, industrial enclosures, disk and sleeve components, automotive powertrain parts, construction machinery components, high-end molds, energy equipment parts, and general industrial machinery.
Surface finish and dimensional stability depend on more than the machine name. Tool selection, fixture rigidity, cutting parameters, coolant delivery, chip evacuation, thermal stability, and inspection method all affect the final result. For valve bodies, for example, threaded ports and sealing surfaces may be more critical than simple drilling speed. For powertrain housings, bore alignment and face relationships may become the main quality-control points.
Manufacturing and Process Role in the Line
In production, a CNC horizontal machining center is usually integrated into a workflow after casting, forging, welding, or rough preparation. Operators load the part into a fixture, confirm the program, run milling, drilling, tapping, boring, and finishing operations, then inspect critical surfaces and hole positions.
The horizontal layout can support better chip flow during cavity, bore, and side-face machining. The fully enclosed protection system also helps contain chips and coolant while improving operator safety and keeping the production environment cleaner. The product page notes that the machine is designed with ergonomic operation and accessible maintenance channels to help improve operating efficiency and reduce maintenance downtime.
Application Scenarios
This machine is suitable for plants that need stable multi-face machining rather than only simple hole-making. Typical use cases include:
- Large cast housings
- Valve components
- Gearbox housings
- Pump housings
- Industrial enclosures
- Disk and sleeve parts
- Automotive powertrain components
- Construction machinery components
- Energy equipment parts
- High-end mold components
- General machinery parts
For a horizontal machining center for valve components, buyers should focus on rotary positioning, fixture access, port machining, threaded holes, and sealing surface accuracy. For a CNC horizontal machining center for large housings, the main concerns are workpiece size, load capacity, setup reduction, chip evacuation, and long-cycle stability.
Quality Control and Production Reliability
The product page describes the machine as a heavy-duty precision solution, but buyers should still verify performance through specifications, inspection data, and part-based review. A responsible procurement process should confirm:
- Maximum workpiece size
- Maximum workpiece weight
- Table size and rotary-table specification
- Axis travel
- Spindle power and speed
- Tool magazine capacity
- Controller configuration
- Positioning accuracy and repeatability
- Coolant and chip removal system
- Fixture compatibility
- Trial cutting availability
- Installation and training support
- Spare-parts support
Zhongshan Zhihe CNC Technology Co., Ltd. is described as a national high-tech CNC machine tool manufacturer specializing in R&D, production, sales, and customized machining solutions for industrial manufacturing applications. For buyers, that matters because a horizontal machining center project often requires application matching, fixture discussion, and production-process review before final selection.
Customization and Buyer Decision Factors
Customization should be driven by the workpiece, not by the machine category alone. Before asking for a quotation, buyers should prepare part drawings, material type, dimensions, weight, machining faces, hole and bore requirements, tolerance targets, surface finish needs, fixture concept, and expected output.
Important decision factors include:
- Whether the part can be completed in fewer setups
- Whether the rotary table supports the required machining angles
- Whether chips can be removed efficiently during deep or side-face cutting
- Whether the machine structure can support long heavy-duty cycles
- Whether optional five-axis linkage is necessary
- Whether the supplier can support fixture planning and trial cutting
- Whether the machine layout fits the plant’s floor space and maintenance access
For many buyers, the right question is not “Which HMC is the biggest?” A better question is: “Which horizontal machining center can hold my critical dimensions across multiple faces with fewer setups and stable cycle time?”
Contact and Next Step
If you are sourcing a CNC horizontal machining center for large housings or reviewing a heavy duty HMC for valve components, industrial enclosures, automotive powertrain parts, or energy equipment parts, start with your workpiece drawing. Send the material, dimensions, weight, machining surfaces, tolerance requirements, and target output.
Zhongshan Zhihe CNC lists its contact information as phone / WhatsApp +86 13620089178 and email zhcnclathe@gmail.com. A practical recommendation should explain how the machine structure, rotary-table capability, fixture plan, chip control, and service support match the actual production task.
