Why Buyers Start Looking for a Drilling and Tapping Center Supplier
When a shop begins comparing a drilling and tapping center supplier, the real question is usually not about the machine nameplate. It is about throughput, repeatability, and whether the next line of parts can be produced without constant babysitting.
For engineers and sourcing teams, this matters because drilling, tapping, and light milling jobs expose weak points quickly. Chip evacuation, fixture rigidity, tool-change time, spindle response, door access, and control simplicity all show up during daily production long before a brochure claim does.
A CNC drilling and tapping center is often chosen for work that needs fast hole making, accurate thread cutting, compact floor usage, and stable batch output. In many plants, it becomes the practical middle ground between a general vertical machining center and a dedicated production machine. That is especially true for aluminum parts, precision hardware, 3C components, automotive aluminum parts, small brackets, and general industrial components where cycle time matters, but the shop still needs flexibility.

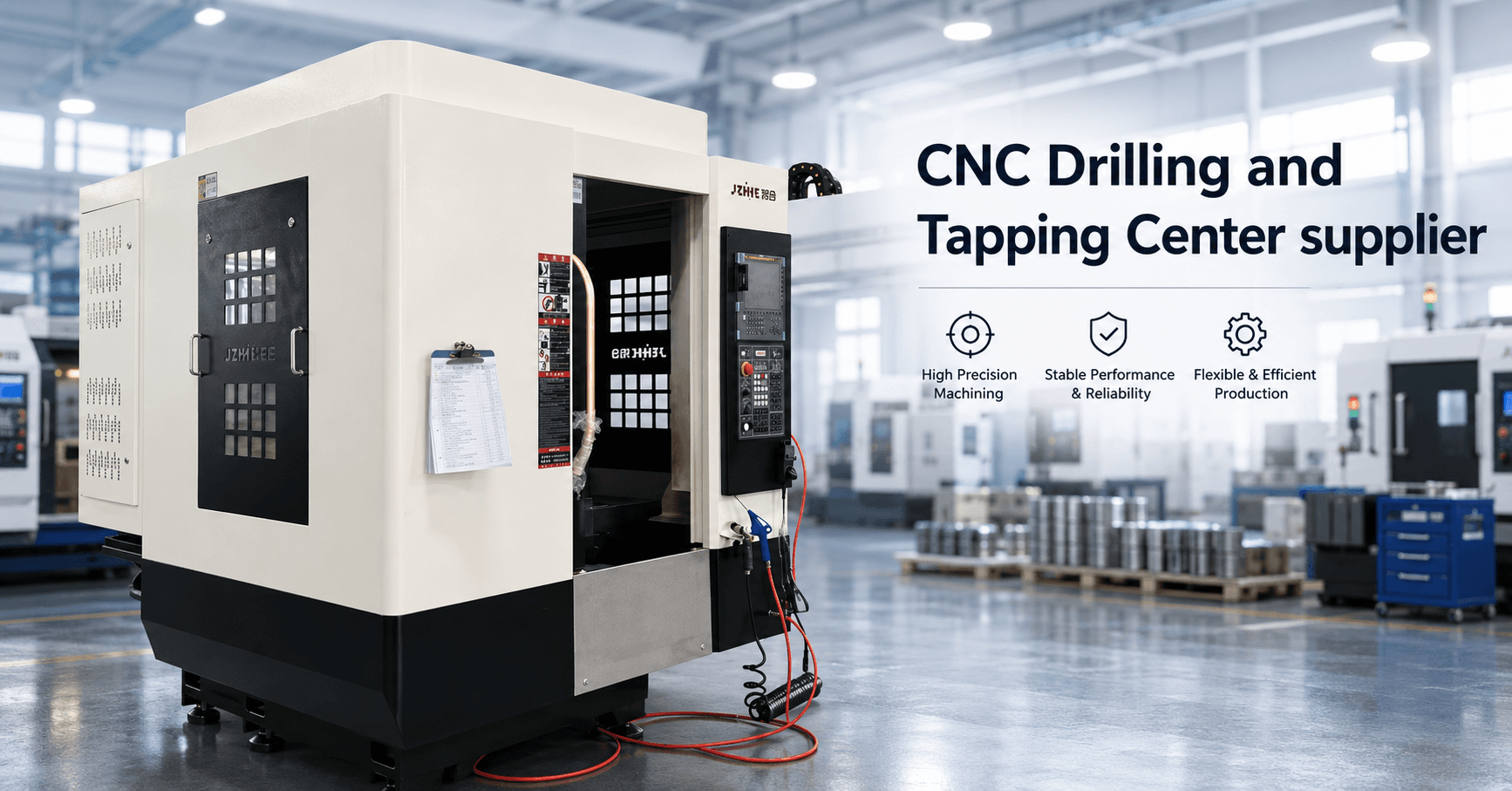

The Zhihe CNC ZH-600T Drilling and Tapping Center gives buyers a clear reference point. Its product page lists 600 / 400 / 300 mm X/Y/Z travel, a 700 × 420 mm worktable, 250 kg maximum table load, BT30 direct-drive spindle, 20,000 rpm maximum spindle speed, 48 / 48 / 48 m/min rapid traverse, 21-tool arm-type BT30 magazine, and MITSUBISHI M80VB CNC controller.
What the Machine in This Category Is Meant to Do
A drilling and tapping center is built for repeated hole-making work, thread machining, chamfering, and light milling. It is not usually bought for heavy roughing or very large workpieces. Its value appears when the part is compact, hole-dense, time-sensitive, and produced in repeated batches.
The ZH-600T product page lists applicable materials including aluminum alloys, copper alloys, carbon steel, and low-carbon alloy steel. It also identifies target industries such as automotive, precision molds, general machinery, and automation, with the machine positioned for high-efficiency batch production.
For buyers, that positioning is useful. It helps separate this machine from a larger VMC. If the work is mainly drilling, tapping, and light milling on small-to-medium precision parts, a dedicated drilling and tapping center may reduce cycle time and free heavier machining centers for other jobs.
Key Product Data Buyers Should Review
| Review Point | ZH-600T Product Data | Why It Matters |
|---|---|---|
| X/Y/Z travel | 600 / 400 / 300 mm | Fits small-to-medium precision parts |
| Worktable area | 700 × 420 mm | Supports compact fixtures and batch parts |
| Maximum table load | 250 kg | Suitable for light-to-medium workpieces |
| Spindle taper | BT30 | Common for high-speed drilling, tapping, and light milling |
| Spindle type | Direct-drive | Supports fast response and stable rotation |
| Spindle speed | Max. 20,000 rpm, optional 15,000 rpm | Useful for aluminum and high-speed hole machining |
| Rapid traverse | 48 / 48 / 48 m/min | Helps reduce non-cutting time |
| Tool magazine | 21-tool arm-type magazine | Supports multiple drilling, tapping, and milling tools |
| Controller | MITSUBISHI M80VB | Supports production CNC operation |
| Positioning accuracy | ±0.005 mm / 300 mm | Helps maintain batch consistency |
| Repeatability | ±0.003 mm / 300 mm | Important for repeated part runs |
These specifications should be compared with actual workpiece drawings, not judged alone. A fast spindle is useful only when the fixture, program, tool list, coolant, chip removal, and operator flow are also matched to the job.
Key Takeaways Before You Compare Suppliers
A good drilling tapping center manufacturer should help you match the machine to the part, not just quote a standard model.
The most useful supplier questions are practical:
- What material will be machined most often?
- How many holes and tapped features are on each part?
- What thread sizes are required?
- What is the current cycle time?
- Are tool changes causing downtime?
- Is the problem speed, surface quality, fixture repeatability, or scrap?
- Does the part need side machining?
- Is a 4th-axis setup useful?
- Should trial cutting be done before shipment?
The ZH-600T page lists a standard 4th-axis interface, optional indexer or rotary table, optional Renishaw / Marposs probe for automatic alignment and in-process measurement, a chain-type chip conveyor with chip cart, and coolant options including flood coolant, coolant tank, and optional spindle center through-coolant.
These options should not be added blindly. A 4th axis is useful only if the part requires indexed or multi-face machining. A probe makes sense when setup alignment or in-process measurement is a real concern. A custom fixture may solve more problems than a larger machine if the current bottleneck is part movement.
Selection Criteria That Actually Change the Buying Decision
1. Part size and work mix
Before asking about controller brands or optional accessories, define the real work. Are you machining automotive valve bodies, 3C aluminum frames, small brackets, fixture plates, or precision hardware parts?
The ZH-600T has a listed maximum workpiece capacity of 600 × 400 × 300 mm, so it is better suited to compact and medium-sized precision parts than oversized components.
2. Spindle speed and tool-change efficiency
For hole-making-heavy parts, spindle speed matters. But it is not the only number to review.
The ZH-600T uses a BT30 direct-drive spindle with 20,000 rpm maximum speed, plus a 21-tool arm-type magazine. In the product case data, the machine is also described with 1.8-second tool change time, which helps reduce waiting time on multi-tool parts.
3. Rapid movement and non-cutting time
Drilling and tapping jobs often include many short moves. If non-cutting time is high, cycle time suffers even when the cutting itself is fast.
The ZH-600T lists 48 m/min rapid traverse on X, Y, and Z axes. For parts with many hole positions, this can matter more than buyers first expect.
4. Accuracy and repeatability
Batch production depends on repeated results, not one good sample.
The product page lists ±0.005 mm positioning accuracy / 300 mm and ±0.003 mm repeatability / 300 mm. These values should still be verified against the buyer’s tolerance requirements, part geometry, and acceptance process.
5. Supplier support
Zhihe’s product page describes a trial cutting protocol where buyers may conduct pre-acceptance trial cutting at the supplier’s facility after assembly and commissioning, followed by final acceptance trial cutting after delivery, installation, and commissioning at the buyer’s facility. The warranty begins after successful final acceptance.
For buyers, this is important. A drilling and tapping center should be judged by how it performs on real parts, not only by how it reads in a quotation.
Case Reference: Automotive Aluminum Valve Body
The ZH-600T product page includes a case involving an automotive aluminum valve body made from ADC12 aluminum alloy, with part dimensions of 350 × 250 × 120 mm. The customer’s earlier process had a cycle time of about 15 minutes per piece, frequent tool changes, and unstable surface finish that caused some batch rework.
The proposed solution used the ZH-600T’s 20,000 rpm direct-drive spindle, 21-tool arm-type magazine, 1.8-second tool change, 48 m/min rapid traverse, and ±0.005 mm positioning accuracy. Reported results included cycle time reduced to under 8 minutes, tool-change waiting time reduced by 70%, surface roughness stabilized at Ra 1.6, and yield improved from 92% to 98.5%.
For sourcing teams, this case shows why the machine should be evaluated as a full production system. The gain did not come from one feature alone. It came from spindle speed, tool-change efficiency, rapid movement, positioning accuracy, and process matching working together.
Case Reference: 3C Electronics Aluminum Mid-Frame
Another case on the product page involves a 3C electronics aluminum mid-frame made from 6063 aluminum alloy, with part dimensions of 280 × 160 × 12 mm. The customer needed drilling, tapping, and side milling, but insufficient rigidity caused chatter marks on thin-walled parts and created a production bottleneck.
The ZH-600T solution used 600 × 400 × 300 mm travel, axis motor power of 1.5 / 1.5 / 3.0 kW, and 4th-axis capability for multi-face machining in one setup. Reported results included completing drilling, tapping, and side milling in one setup, eliminating re-clamping errors, removing chatter marks, and increasing daily output from 180 to 320 pieces.
This case is especially relevant for buyers in 3C electronics, aluminum frame machining, communication components, and precision hardware production.
Common Mistakes Buyers Make
One common error is over-specifying the machine based on one part, then ending up with a model that is harder to run across the rest of the workload. Bigger is not always better. If the part is mainly compact, hole-dense, and made in batches, a drilling and tapping center may be more efficient than a larger general VMC.
Another mistake is assuming every enclosed CNC machine is interchangeable. They are not. A drilling and tapping center is designed around speed, tool-change efficiency, and compact repeated operations. A larger vertical machining center may offer broader cutting capacity, but it may not be the most efficient machine for fast hole-making work.
A third mistake is skipping the “boring” questions: How will the machine be packed? Who handles installation? What training is included? What happens if the first setup needs adjustment?
The ZH-600T product page lists 45–60 working days delivery after down payment and signed contract, standard export wooden case packaging with moisture-proof, shock-proof, and rust-proof treatment, sea or air freight options, on-site installation and commissioning by supplier engineers, free 2–3 days on-site training, 12-month warranty from final acceptance, and long-term genuine spare parts supply.
Who This Type of Machine Suits Best
This class of machine is a sensible fit for job shops, contract manufacturers, and production lines that need fast CNC drilling, tapping, and light milling on small-to-medium parts.
It is especially relevant for:
- Automotive aluminum parts
- 3C electronics components
- Aluminum frames and housings
- Precision hardware
- Small brackets
- Fixture plates
- Communication components
- General machinery parts
- Automation components
- Compact batch-production metal parts
If your parts are mostly hole-dense, time-sensitive, and not excessively large, a drilling and tapping center can be a smart production tool. If your work constantly changes between heavy milling, large workpieces, and specialized multi-face operations, then a broader machining center review may be necessary before committing.
What to Ask a Supplier Before Requesting a Quote
Before requesting a quotation, prepare:
- Workpiece drawing
- Material
- Dimensions
- Hole size and thread details
- Required tolerance
- Surface finish target
- Current cycle time
- Current quality issue
- Batch quantity
- Fixture concept
- Need for 4th-axis machining
- Controller preference
- Delivery destination
- Installation and training expectations
That is the fastest way to get a useful machine recommendation instead of a generic catalog answer.
For a drilling and tapping center supplier, the value is not only in selling equipment. It is in helping the buyer avoid a mismatch between machine capability and production reality.
FAQ
What is a drilling and tapping center mainly used for?
It is mainly used for high-speed drilling, tapping, chamfering, and light milling on small-to-medium precision parts, especially where repeated hole patterns and thread quality matter.
Why choose a drilling and tapping center instead of a larger VMC?
If the part is compact and hole-making-heavy, a drilling and tapping center may reduce non-cutting time and improve output. A larger VMC may still be better for heavy milling, larger parts, or broader machining flexibility.
Is the ZH-600T suitable for aluminum parts?
Yes. The product page lists aluminum alloys as applicable materials and includes cases involving an ADC12 automotive aluminum valve body and a 6063 aluminum 3C electronics mid-frame.
What should buyers confirm before ordering?
Confirm travel, table size, table load, spindle speed, spindle taper, spindle motor power, controller, tool magazine, rapid traverse, positioning accuracy, repeatability, coolant system, chip conveyor, optional 4th axis, probe system, trial cutting, delivery, installation, training, warranty, and spare parts terms.
Next Step for Buyers
If you are planning a new cell or replacing an aging machine, the next step is straightforward: prepare your workpiece information, then ask for a model recommendation based on actual production needs, not just the title of the machine.
The ZH-600T is worth evaluating when the buyer needs a compact high-speed drilling and tapping center with BT30 direct-drive spindle, 20,000 rpm speed, 48 m/min rapid traverse, 21-tool magazine, MITSUBISHI M80VB control, and proven application data for automotive aluminum parts and 3C electronics aluminum frames.
